Q195 Q235 HRC Black Hot Rolled Carbon Steel Coils Roll
Carbon steel coil
author: fuliheng
OVERVIEW:
Hot rolledcarbon steel coilContinuous casting slabs or primary rolling slabs are used as raw materials, heated by a stepping furnace, and dephosphorized by high-pressure water, and then enter the roughing mill. The rough rolling material is cut through the head, tail, and then into the finishi
tags:
Steel Coil Roll, Carbon Steel Coil, Black Steel Coil
Hot rolled carbon steel coil

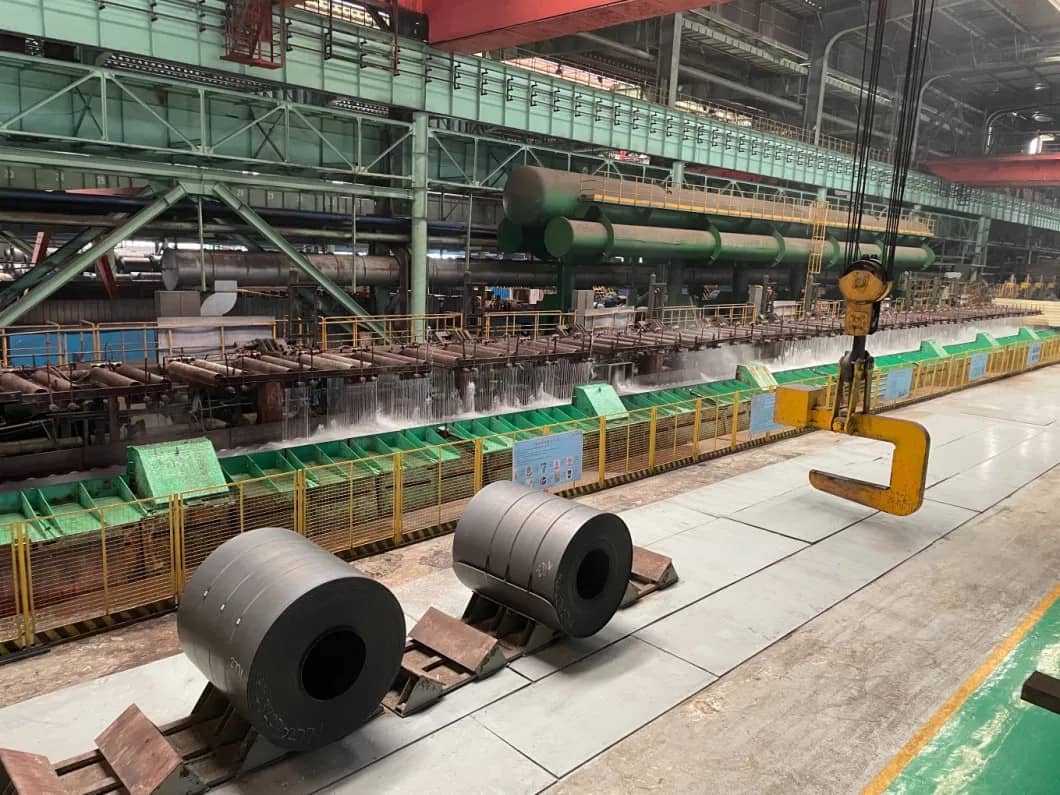

Continuous casting slabs or primary rolling slabs are used as raw materials, heated by a stepping furnace, and dephosphorized by high-pressure water, and then enter the roughing mill. The rough rolling material is cut through the head, tail, and then into the finishing mill, and computer-controlled rolling is carried out. After the final rolling, it will go through laminar cooling (computer-controlled cooling rate) and take-up by the coiler to become a straight hair coil. The head and tail of straight hair curls tend to be tongue-shaped and fish-tailed, with poor thickness and width accuracy, and often have wavy, folded, tower-shaped and other defects on the edges. The coil is heavier and the inner diameter of the steel coil is 760mm. (Generally used in the pipe-making industry.) After straightening the hair through the cutting head, tail cutting, trimming and multi-pass straightening and smoothing finishing lines, and then cutting or re-rolling, it becomes: hot rolling Steel plates, flat hot rolled steel coils, slitting tapes and other products. If the hot-rolled finishing coil is pickled to remove scale and coated with oil, it will become a hot-rolled pickled coil.
Product Specification
Standard | ASTM A20/A20M, A36/A36M, JIS G3115, DIN 17100, EN 10028, GB |
Main Grade | SS400, A36, Q235B, Q345A, Q345B, S235JR, S275JR, S355JR, S355J0, S355J2, St37, St52, SM400A, SM400B, SPCC, SGCC, DC01, DC02, DC03, DC04 |
Thickness | Hot rolled: 1.5 mm- 24 mm, Cold rolled: 0.2 mm- 3 mm |
Width | 500-2000mm |
Tolerance | Thickness: +/-0.02mm, Width:+/-2mm |
Other Common Size | 1219*2438; 1220*2440; 1500*3000; 1500*6000; 2438*6096; 2438*9143 Can be customized, cut, or processed according to customers' requirements |
Production process | Turn on the roll --> solder side-forming --> weld --> weld the seam inner & external --> polishing & fix melting --> fix the diameter & to be straight --> vortex test --> cuted by saw --> press test --> final test --> package |
Feature | A) OEM & ODM orders are accepted B) Best price C) High quality D) Prompt delivery E) Manufacture according to the sizes and design of customers F) Best service G) Certification: ISO9001-2015, CE |
Surface | Clean, blasting and painting, Decorative pattern into tear, diamond, round bean shaped, mixed oval shape or as client requirement. |
Payment Terms | T/T 30% deposit, 70% balance should be paid before shipment, or L/C are available |
Package | Tied up with steel strips and wrapped with water proof paper or customized |
Application | Building Construction, Bridge, Architecture, Vehicles Components, Hipping, High pressure container, Boiler, Shipping building, Food and Mechanical Industries, Large Structure steel etc. |
Steel Plate/Coil Chemical Composition and Mechanical Properties
Standard | Grade | C | Mn | Si | P | S | Yield strength | Tensile strength | Elongation |
ASTM A36 | A36 | ≤0.25 | 0.80-1.20 | ≤0.40 | ≤0.045 | ≤0.050 | ≥250 | 400-520 | ≥20% |
EN 10025 | S275JR | ≤0.21 | ≤1.50 | ≤0.50 | ≤0.035 | ≤0.035 | ≥270 | 430-580 | ≥14% |
EN 10025 | S235JR | 0.17-0.22 | 0.14-0.15 | ≤0.35 | ≤0.045 | ≤0.045 | ≥235 | 360-510 | ≥17% |
JIS G3101 | SS400 | 0.17-0.22 | 0.30-0.70 | ≤0.50 | ≤0.045 | ≤0.035 | ≥235 | 340-470 | ≥24% |
GB/T 700 | Q235B | 0.14-0.22 | 0.30-0.65 | ≤0.35 | ≤0.045 | ≤0.045 | ≥235 | 375-500 | ≥25% |
GB/T 1591 | Q345B | 0.18-0.22 | 0.60-1.60 | ≤0.50 | ≤0.035 | ≤0.035 | ≥345 | 470-630 | ≥17% |
Classification:
Common carbon plate, excellent carbon plate, low alloy plate, ship plate, bridge plate, boiler plate, container plate, etc. Rolled hard coils: Continuous rolling of hot-rolled pickled coils at room temperature. Hot rolled steel plate products include steel strip (coil) and steel plate cut from it. The steel strip (roll) can be divided into straight rolls and finishing rolls (sub-rolls, flat rolls and slitting rolls).
Available grades, supply standards and uses
Standard and grade | National standard | Comparable to foreign standards | Function and use | ||
Material category | Executive standard | Grade | Standard | Grade | Suitable for the manufacture of cold-formed parts. |
Mild Steel Coil | Q/BQB302 | SPHC | JISG3131 | SPHC | |
SPHD | SPHD | ||||
SPHE | SPHE | ||||
SAE1006/SAE1008 | SAE1006/SAE1008 | ||||
XG180IF/200IF | XG180IF/200IF | ||||
General structural steel | GB/T912-1989 | Q195 | JISG3101 | SS330 | For general construction of buildings, bridges, ships, vehicles, etc. |
Q235B | SS400 | ||||
SS400 | SS490 | ||||
ASTMA36 | SS540 |
About Us
We provide one-stop trading services, including: design, quotation, inspection, packaging, delivery and installation to meet customer needs. We have many excellent experienced personnel. Our technical team combines advanced technology to provide sketch design and efficient project solutions. Our international sales staff can use professional knowledge to solve your problems. Our customers will always be respected because we meet all aspects of your personal needs. The company has always insisted on striving for survival by quality, continuously innovating in management and technology, and has established a sound scientific management and quality assurance system.

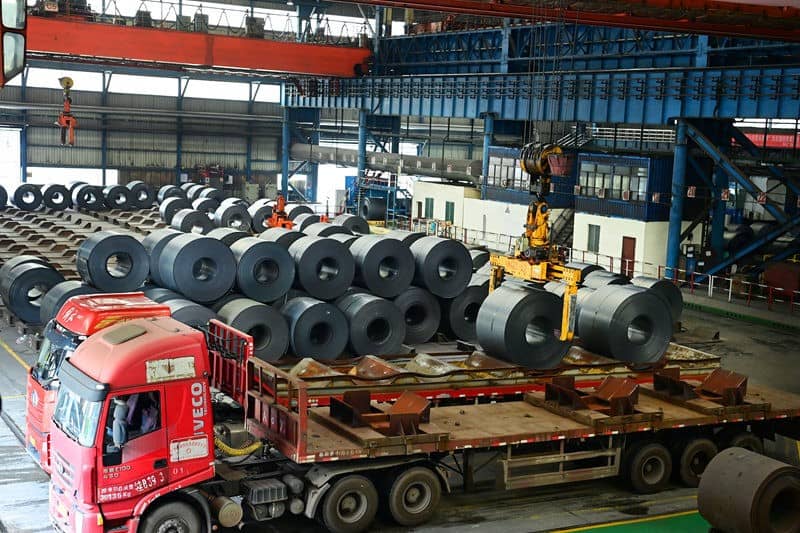

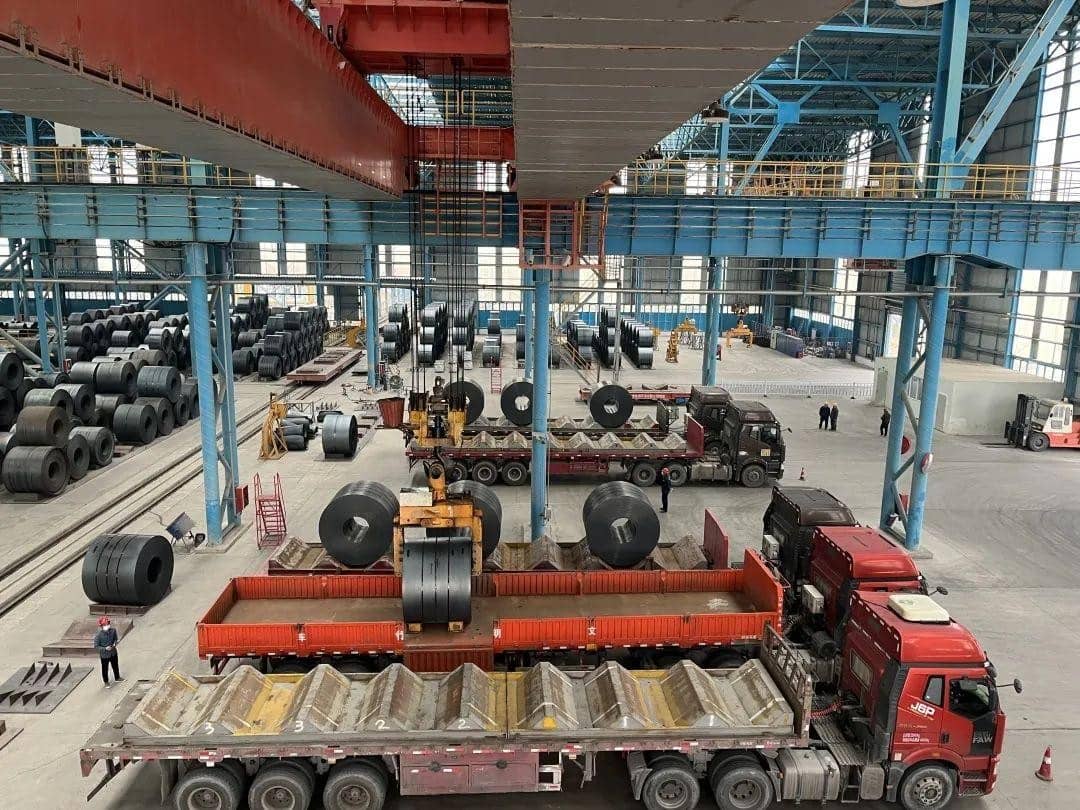

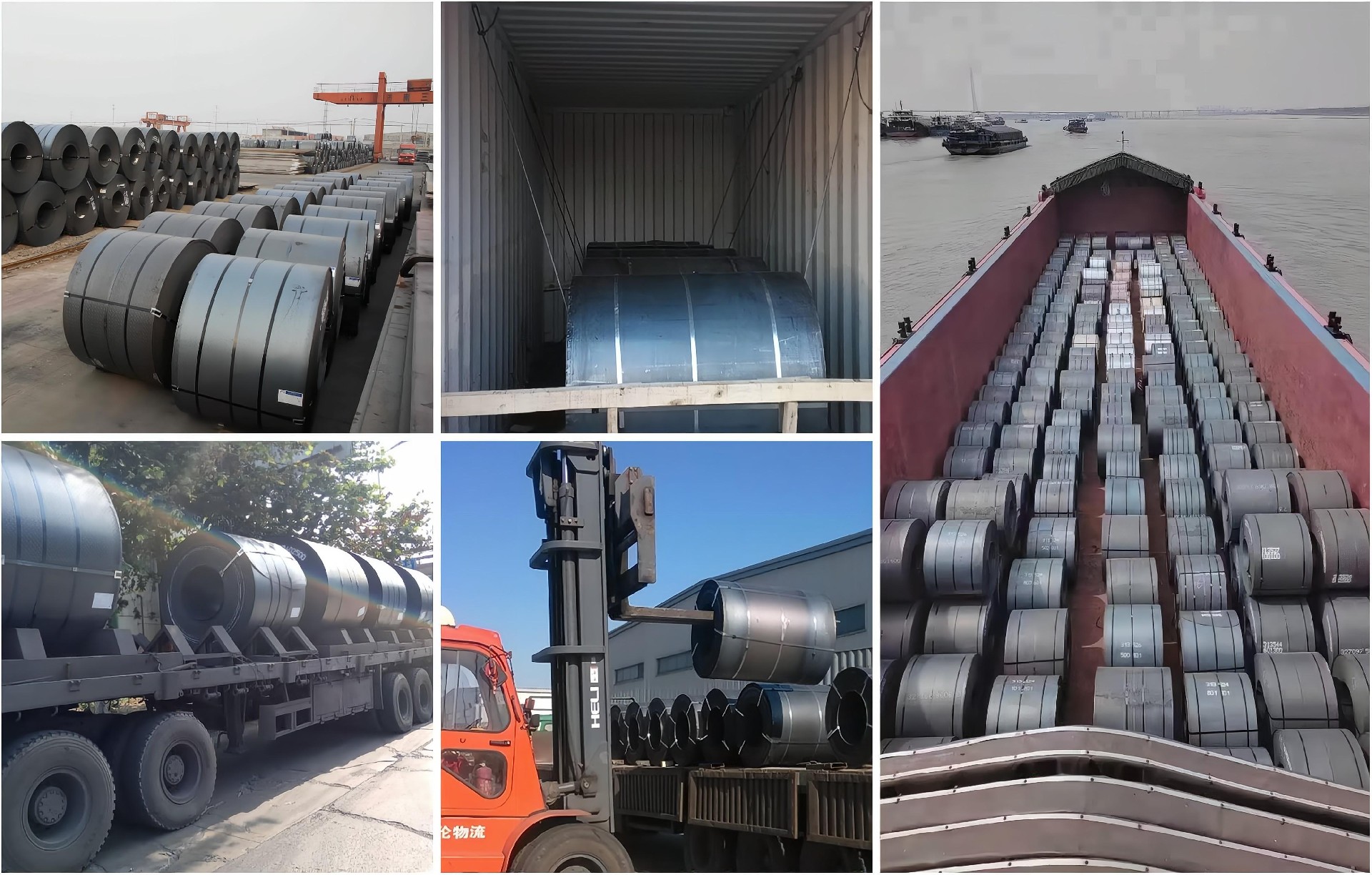

Packaging And Transportation
Get Your Carbon Steel Coils Today! Elevate your business with our premium carbon steel coils, designed to meet the demands of modern industries. We offer reliable, high-performance steel solutions tailored to your needs. Contact us.
Products: Carbon Steel Coil
Material: Q235B, A36, Q195, Ss400, St37-2, Ect.
Standard: ASTM, JIS, GB, AISI, DIN, BS
Thickness: 6-400mm
Width: 800-1500mm
Surface: Black Painting, Varnish Paint, Anti Rust Oil, Hot
Coil Weight: 3-10 Mt
Certification: ISO, RoHS
Technique: Hot Rolled
Application: Construction, Ship Building, Machinery Manufacturi
Edge: Slit edge
Coil Inner Size: 508mm/610mm
Mill Test Certificate: We Can Offered
Stock or Not: Stock
Packing: Standard Packaging
Delivery Time: 8-14 Days
Payment Term: 30%T/T Advance + 70% Balance
Hot rolledcarbon steel coilContinuous casting slabs or primary rolling slabs are used as raw materials, heated by a stepping fur···
