300 Series Surface 8K 2b Cold Rolled Stainless Steel Sheet
Stainless steel plate
author: fuliheng
OVERVIEW:
WHAT IS STAINLESS STEEL SHEET?The surface of the stainless steel plate is smooth and has high plasticity, toughness and mechanical strength, and is resistant to corrosion by acids, alkaline gases, solutions and other media. It is an alloy steel that does not easily rust, but it is not absolutely not
tags:
Stainless Steel Sheet, 300 Series Stainless Sheet, Cold Rolled Stainless SheetWHAT IS STAINLESS STEEL SHEET?
The surface of the stainless steel plate is smooth and has high plasticity, toughness and mechanical strength, and is resistant to corrosion by acids, alkaline gases, solutions and other media. It is an alloy steel that does not easily rust, but it is not absolutely not rusty. Stainless steel plate refers to a steel plate that is resistant to corrosion by weak media such as atmosphere, steam, and water, and acid-resistant steel plate refers to a steel plate that is resistant to corrosion by chemically aggressive media such as acid, alkali, and salt. Stainless steel plates have been around since the beginning of the 20th century, and now have a history of more than a century.
Stainless steel does not stain, corrode, or rust as easily as regular carbon steel and provides high strength and impact resistance along with the aesthetic appeal. The material also has anti-bacterial qualities and is easy to clean and sanitize.
Stainless steel sheet is typically sold in the annealed condition and is available in most grades. Our stainless steel sheets come in both a standard 2B finish and various polished finishes. Polished surfaces range from the standard #4 to a mirrored finish #8 and are usually covered with a removable vinyl coating. Our standard sheet sizes include 4’ x 8’, 4’ x 10’, and 5’ x 10’, but customized sizes are also available. Stainless steel plate is sold in the HRAP (Hot Rolled Annealed and Pickled) condition and finishes.
HOW DO YOU CUT STAINLESS STEEL SHEET?
Like sheet, stainless steel plate comes in standard sizes varying in width from 4’ to 8’ and in length from 8’ to 20’, but can also be customized to suit the application. Stainless cut plate may be sheared in thicknesses up to 3/8”, and plasma cut in thicknesses over that. Waterjet, band-saw, or laser cutting is also available. If you can’t find the size or grade that you’re looking for, feel free to contact us for assistance.
Product Specification
Description | Stainless steel sheet, Stainless steel plate, Cold rolled stainless steel sheet, Hot rolled stainless steel plate, Inox steel plate, Inox steel sheet |
Thickness | Cold rolled: 0.1mm-8mm |
Hot rolled: 3mm-160mm | |
Length | 0.5~10m or customized |
Width | 0.5~3m or customized |
Standard | ASTM, AISI, DIN, EN, GB, JIS |
Grade | Mainly: 201, 202, 304, 304L, 304H, 316, 316L, 316Ti, 2205, 330, 630, 660, 409L, 321, 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc 300series: 301, 302, 303, 304, 304L, 309, 309S, 310, 310S, 316, 316L, 316Ti, 317L, 321, 347 200series: 201, 202, 202Cu, 204 400series: 409, 409L, 410, 420, 430, 431, 439, 440, 441, 444 Others: 2205, 2507, 2906, 330, 660, 630, 631,17-4ph,17-7ph, S318039 904L,etc Duplex stainless steel: S22053, S25073, S22253, S31803, S32205, S32304 Special Stainless Steel: 904L, 347/347H, 317/317L, 316Ti, 254Mo |
Technique | Cold rolled, Hot rolled |
Surface | 2B, 2D, BA, HL, 4K, 8K, NO.1, NO.3, NO.4 |
Edge | Mill edge/Slit edge |
Certificates | BV, ISO, SGS, CE |
MOQ | 1 ton |
Payment terms | TT(30% deposit advance, 70% balance) or L/T at sight |
Price term: | EX-FACTORY, FOB, CIF or CFR |
Delivery time | 10~20days after receiving deposit |
Productivity | 10000 tons/month |
Application | Escalator, Elevator, Doors |
Grade Specifications for Stainless Steel Plate
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 301 | 1.4310 | S30100 | SUS 301 | – | – | – | – |
SS 301L | – | S30103 | SUS 301L | – | – | – | – |
SS 304 | 1.4301 | S30400 | SUS 304 | 304 S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 304 S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
SS 310 | 1.4841 | S31000 | SUS 310 | 310 S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
SS 310S | 1.4845 | S31008 | SUS 310S | 310 S16 | 20Ch23N18 | – | X8CrNi25-21 |
SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316 S31 / 316 S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316 S11 / 316 S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS 321 | 1.4541 | S32100 | SUS 321 | – | – | – | X6CrNiTi18-10 |
SS 409 | 1.4512 | S40900 | – | 409 S19 | SUH 409 | Z3CT12 | – |
SS 410 | 1.4006 | S41000 | SUS 410 | 410 S21 | – | Z10C13 / Z13C13 | X12Cr13 |
SS 420 | 1.4021 | S42010 | SUS420J1 | 420 S29 / 420 S37 | – | – | X20Cr13 |
SS 420J1 | 1.4021 | S42010 | SUS420J1 | 420 S29 | – | Z20C13 | X20Cr13 |
SS 420J2 | 1.4028 | S42000 | SUS420J2 | 420S37 | – | Z20C13 | X20Cr13 |
SS 430 | 1.4016 | S43000 | SUS 430 | 430 S17 | – | Z8C17 | X10Cr17 |
Chemical Properties
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 301 | 0.15 max | 2.0 max | 1.0 | 0.045 max | 0.030 max | 16.0 – 18.00 | – | 6.00 – 8.00 | – |
SS 301L | 0.03 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.0 – 18.0 | – | 6.00 – 8.00 | – |
SS 304 | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 18.0 – 20.0 | – | 8.00 – 11.00 | – |
SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.0 – 20.0 | – | 8.00 – 13.00 | – |
SS 310 | 0.08 max | 2.0 max | 1.50 max | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
SS 310S | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | – | 9.00 – 12.00 | – |
SS 405 | 0.25 max | 2.0 max | 1.50 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 22.00 | – |
SS 409 | 0.08 max | 1.0 max | 1.0 max | 0.045 max | 0.045 max | 11.75 max | – | – | – |
SS 410 | 0.15 max | 1.50 max | 1.0 max | 0.04 max | 0.020 max | 11.50 – 13.50 | – | 0.0 – 0.75 | Balance |
SS 420 | 0.16 – 0.25 | 1.50 max | 1.0 max | 0.04 max | 0.015 max | 12.00 – 14.00 | – | – | – |
SS 430 | 0.08 max | 1.0 max | 1.0 max | 0.04 max | 0.02 max | 16.00 – 18.00 | – | – | Balance |
Mechanical Properties
Grade | Density | Melting Point | Tensile Strength ksi (min.) | Yield Strength (0.2%Offset) ksi (min.) | Elongation |
301 1/4 | – | – | 125 | 75 | ≥25% (in 50 mm) |
301 1/2 | – | – | 150 | 110 | 18% |
301 Full Hard | – | – | 185 | 140 | 9% |
SS 301L | – | – | 515 | 205 | 40% |
SS 304/304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% |
SS 310/310S | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% |
SS 316/316L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% |
SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
SS 321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
SS 405 | – | – | 515 | 205 | 40% |
SS 409 | – | – | 450 | 240 | 25% |
SS 410 | – | – | 450 – 510 | 205 – 290 | 20% – 34% |
SS 420/420J1/420J2 | – | – | 650 – 950 | 400 – 600 | 10% – 12% |
SS 430 | – | – | 450 – 600 | 260 | 20% |
Surface description
Surface | Definition | Application |

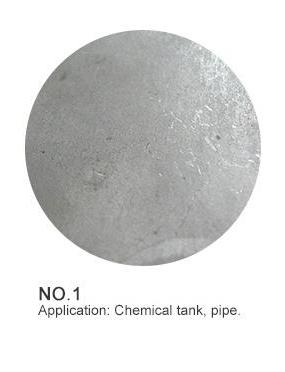

No.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe etc. |
2D | When finishing acid cleaning by heat treatment or equivalent processing.Temper cold rolling is performed till proper gloss is acquired. | Areas without surface gloss requirement,such as construction, DDQ and general purpose. |
2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.The surface brightness and flatness of No.2B is better than No.2D. No.2B could nearly satisfy comprehensive uses. | Medical equipment, Food industry, Construction material, Kitchen utensils etc. |
No.3 | Polished with abrasive belt of git#100 to #200, have better brightness with discontinuous coarse stria. | Kitchen utensils, Building construction etc. |

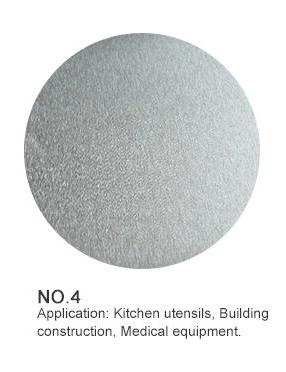

No.4 | Polished with abrasive belt of grit #150 to #180,have better brightness with discontinuous coarse stria,but thinner than No.3. | Kitchen utensils, Building construction, Medical equipment etc. |

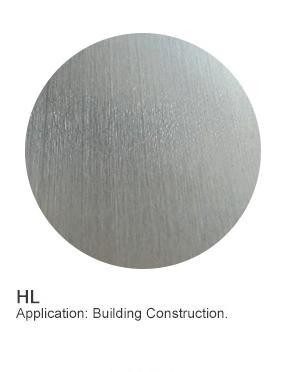

Hairline | Polished with abrasive belt of grit #150 to #320 on the NO.4 finish and has continuous polishing streaks. | Building Construction etc. |

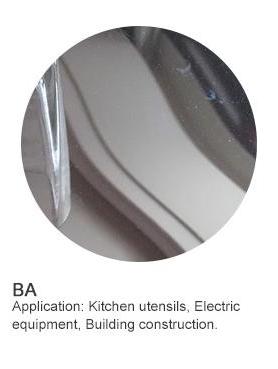

BA (No.6) | Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity. | Kitchen utensils, Electric equipment, Building construction etc. |
Mirror (No.8) | The product have excellent brightness and prefer reflexivity can to be the mirror. | Building construction, decoration etc. |

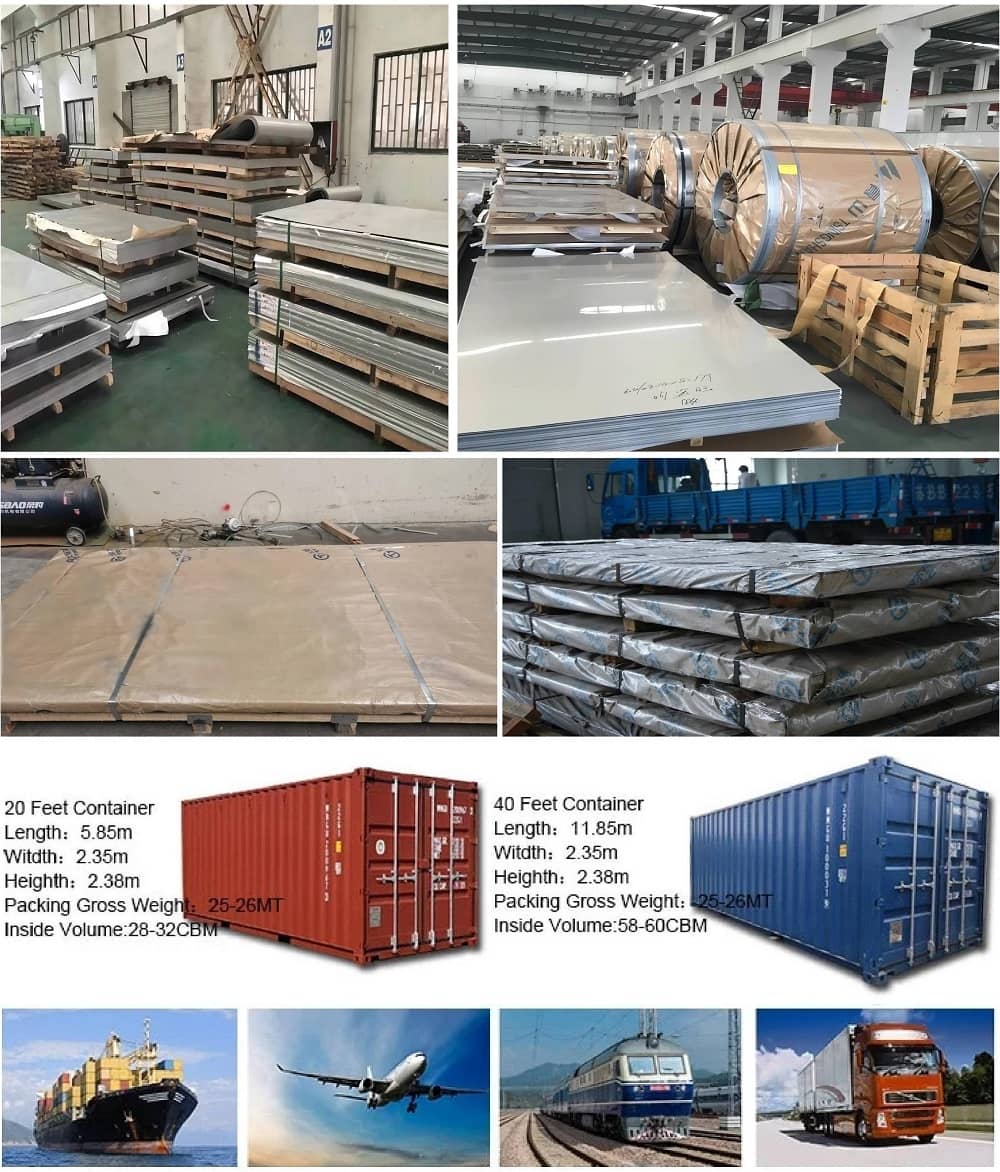

Packaging And Transportation
1) Packaging: 3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve or as customers' requirements.
2) Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
3) Trade terms: FOB/CIF/CFR
4) Shipping port: Qingdao/Tianjin/Shanghai
5) Shipment: A: Length: ≤6m, loaded in 20GP Container. B: Length: ≤12m, loaded in 40GP Container.
Remark: Size of 20GP Container (inside :5898*2352*2393mm); Size of 40GP Container (inside:12032*2352*2393mm); Size of 40HQ Container (inside:12032*2352*2698mm).
6) Delivery time: Normal size: 7-15days send from warehouse directly. Special size:15-30 days custom made for you.
Get Your Stainless Steel Sheet Today! Elevate your business with our premium stainless sheet, designed to meet the demands of modern industries. We offer reliable, high-performance steel solutions tailored to your needs. Contact us.
Production Process: Cold Rolled
Material Standards: ASTM, DIN, EN, JIS, GB
Width: 0.5~3m or customized
Length: 0.5~10m or customized
Thickness: Cold rolled: 0.1mm-8mm
Delivery Conditions: FOB, CIF, EXW
Surface Process: 2B, BA, HL, No.1-No.4, 1D, 2D, Mirror
